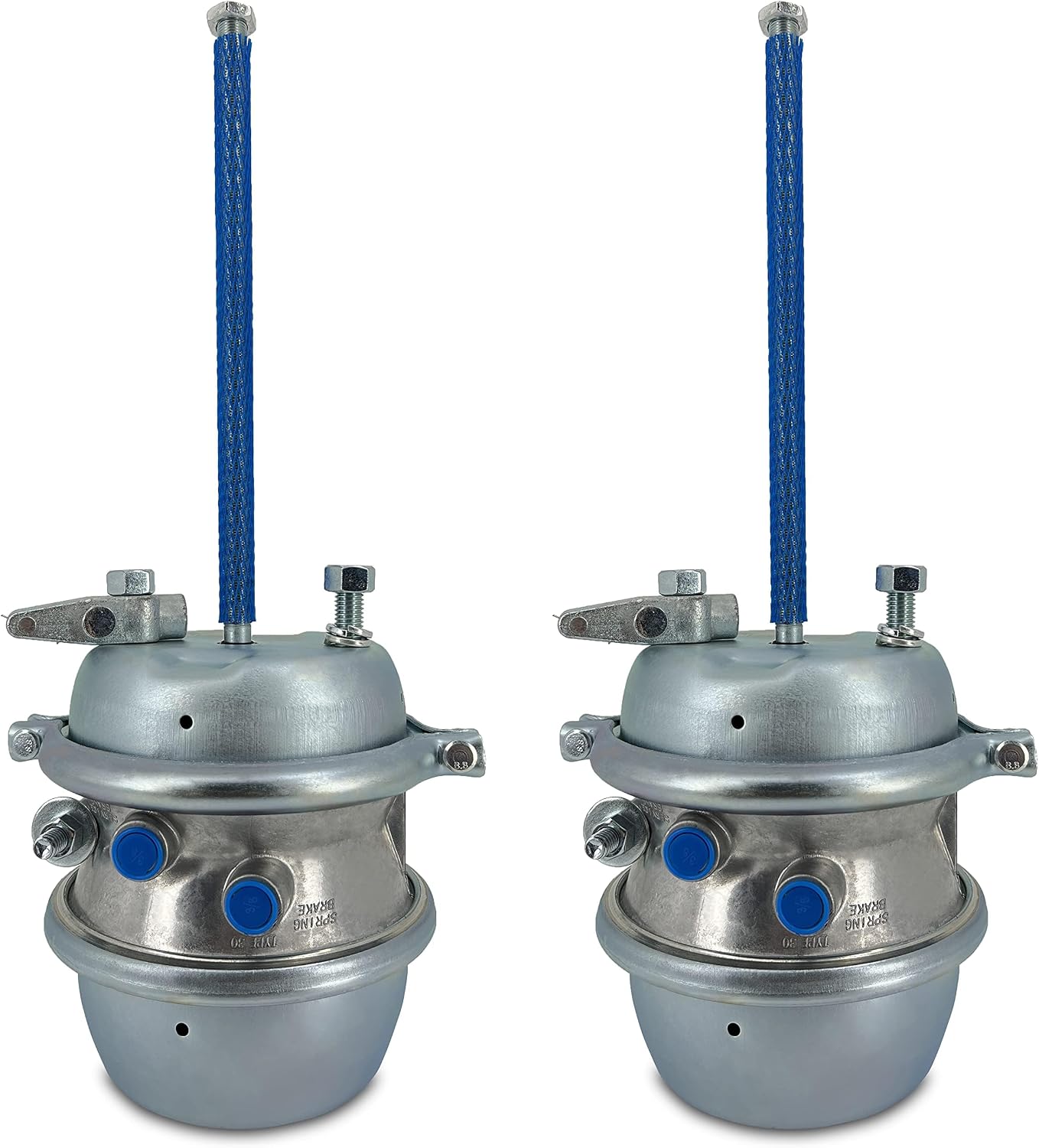

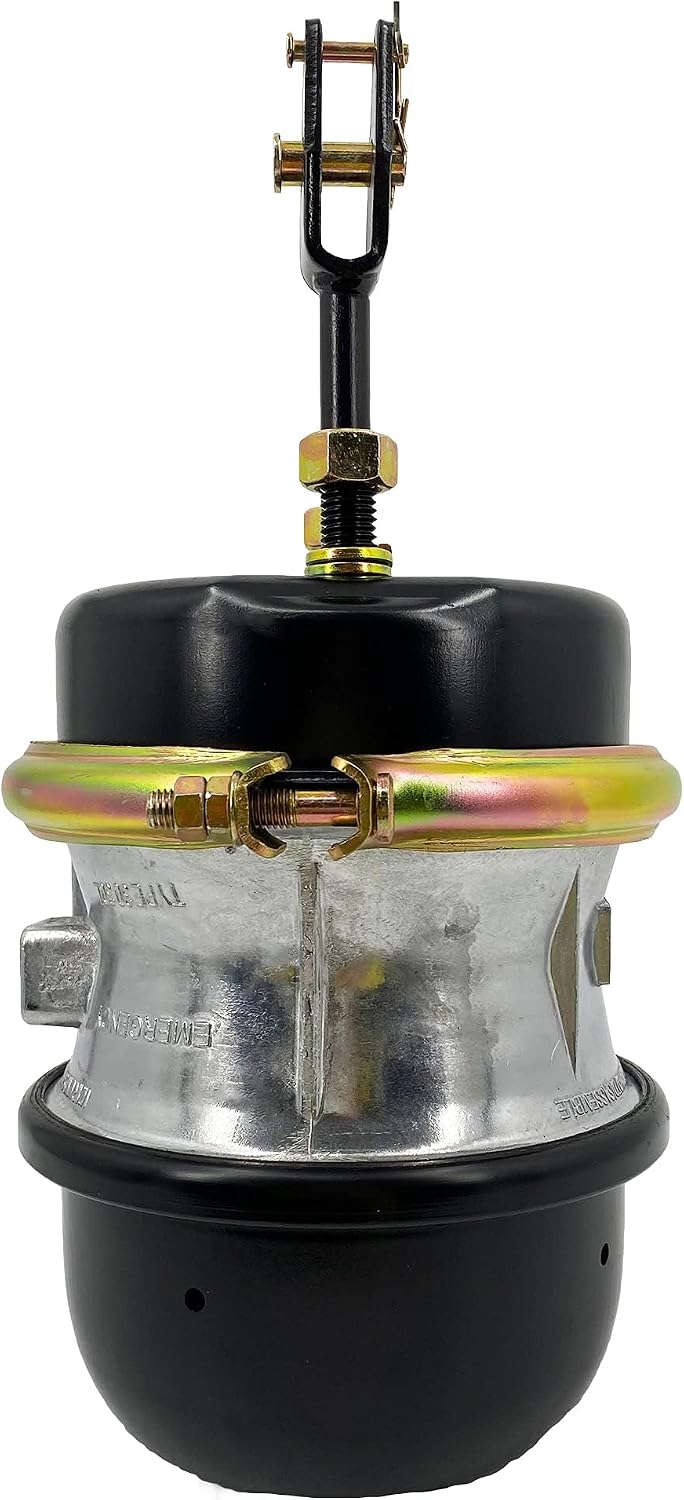

2 Pack of Type 30/30 Air Brake Chamber Welded Clevis 3" Long Stroke 3030 Replaces Haldex GC3030LCW LC3030LCW Bendix NT3030ELS-WC IHC 3541891C91 Freightliner HDX1373030215

2 Pack of Type 30/30 Air Brake Chamber Welded Clevis 3" Long Stroke 3030 Replaces Haldex GC3030LCW LC3030LCW Bendix NT3030ELS-WC IHC 3541891C91 Freightliner HDX1373030215

• TYPE - Long Stroke Air Brake Chamber Type 3030 30/30 30 30 Welded Clevis
• REPLACEMENT - Bendix NT3030ELSWC NT3030ELS-WC // Haldex GC3030LCW LC3030LCW // Freightliner HDX1373030215 // Automann 179.SB3030SLW225 // IHC 3541891C91 // Others BTS-3030LS-WCR GTA-3030LS-WCR
• SPECS - Actuator Type Size: 3030 // Stroke Type: Long // Available Stroke: 3" // Length from mounting bracket to end of Spring Housing: 9-7/8" // Length of Piggyback: 7-3/8" // Dimension at rolled Spring Housing flange: 8-5/16" // Dimension at Service Clampband: 10-3/16" // Pushrod Length from face of Service Housing: 1" // Distance to Clevis Pin centerline from face of Service Housing: 2-1/4" // Weight: 21.9 lbs.
• FEATURES - Combination with Welded Clevis Long Stroke Size 3030 Square Bosses // Superior Power Spring Technology; Advanced powder coating process; // Resists corrosion and fatigue // Double O-ring Centerseal; Two o-rings for positive sealing and plastic bearings for long life // World Class Diaphragm; High quality rubber compound, resistant to heat and cold // Self-piloting Dust Shield // Sizes to fit all drum brake applications
• WARRANTY - 1-Year Unlimited Mile Warranty - includes assurances about the quality of the item, as well as a promise to provide replacement if something goes wrong within a set amount of time.
